This documentation is valid for Creatio version 7.16.0. We recommend using the newest version of Creatio documentation.


The [Image] element (Fig. 1) displays images. This element consists of two parts: the image itself, and the image container.

Fig. 1 Adding an image


Image setup area

Use the setup area on the right to configure the image and the image container.

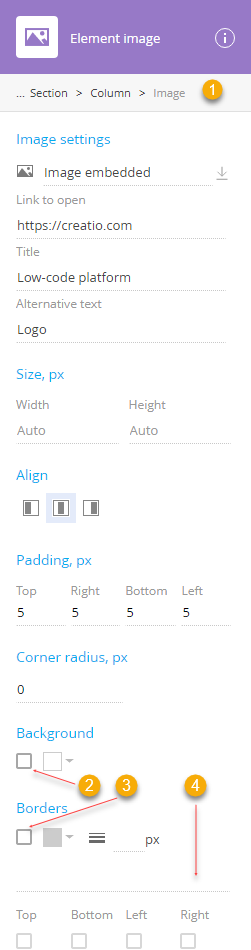

Fig. 2 Image setup area


Property

Function

Breadcrumb navigation (1)

Use “breadcrumbs” at the top of the setup area to navigate the parent (column, section, banner, block, and template) elements.

Image settings

Use the scr_field_image_proper.png field to upload an image from your computer or insert the URI of an image.

Note

The [Image] element supports Data URIs. You can insert a base64-encoded image instead of a URL.
Base64-encoded images are part of the HTML code of the message and are not normally filtered by email clients that prevent external images from loading by default.

[Link to open] – specify a URL to use the image as a hyperlink.

[Title] – specify the text to display when the user hovers the mouse pointer over the image.

Note

The title text is often used to describe things unclear at first glance.

[Alternative text] – specify the alternative text. Alternative text is displayed in place of the image when the latter is not available and is supported by some screen readers.

Size, px

Specify the width and height of the image.

By default, both [Width] and [Height] parameters have the “Auto” value. If you leave this parameter unchanged, the image will either stretch or shrink to fit the container.

Change one of the values to resize the image and keep the ratio.

Change both values to force resize the image to the specified height and width disregarding the ratio.

Align

Align the image horizontally (left btn_alignment_horizontal_left00024.png, center btn_alignment_horizontal_center00025.png, or right btn_alignment_horizontal_right00026.png).

Note

Alignment may produce no visible effect depending on the ratio of the image and the current ratio of the parent container.

Padding, px

Specify the distance (in pixels) between the image and each of the borders of the container.

Padding is specified separately for each side.

Corner radius

Specify the circular radius of the corners of the image. Leave this property empty for sharp corners. This defines the circular radius of all 4 corners of the image.

Note

Use the [HTML] element with inline or embedded CSS styles to specify elliptical corners and other exotic effects.

Background

Set background color for the entire image.

Background style settings are disabled by default. Select the checkbox (2) to enable them.

Clear this checkbox to disable all background settings of the current image.

Click content_designer_background_color00027.png to open the color picker and select the background color.

Note

The background fills the entire container, i.e. if the padding setting values are not set to 0, the background color should be visible around the image. If the image has transparent areas, the background color will be visible through them.

Borders

Configure the borders of the image.

Border style settings are disabled by default. Select the checkbox (3) to enable them.

Click border_color_picker00028.png to open the color picker and select the border color.

Update the icon_border_width00029.png field to specify the border width. To hide the border, select the “Hidden” border style.

Use the dropdown menu (4) to select the border style. When the border settings are enabled, the “Solid” style is selected by default. The following styles are available:

  • border_style_hidden00030.png – Hidden

Note

The border is defined but invisible. The border width effectively equals 0.

  • border_style_dotted00031.png – Dotted

  • border_style_dashed00032.png – Dashed

  • border_style_solid00033.png – Solid

  • border_style_double00034.png – Double

  • border_style_groove00035.png – Groove

  • border_style_ridge00036.png – Ridge

  • border_style_inset00037.png – Inset

  • border_style_outset00038.png – Outset

Select or clear [Top], [Bottom], [Left] and [Right] checkboxes to enable or disable the border style settings for the corresponding border.
