Set up campaign diagram

A campaign flow diagram (Fig. 1) includes:

Use the Campaign designer to set up campaign flow diagrams. To open the Campaign designer:

  1. Open the needed record in the Campaigns section.

  2. Go to the Campaign flow tab and click Create if no diagram exists or Edit to change an existing diagram.

Fig. 1 Campaign designer overview
Fig. 1 Campaign designer overview

Campaign designer features

The Campaign designer lets you:

  • Save and cancel changes using the toolbar (1).

    note

    Creatio saves campaigns automatically. If you close a campaign diagram without saving, you will be able to load the autosaved data later.

    Use the corresponding buttons on the toolbar to open the element setup area, open the Academy, or search the diagram for campaign elements by name.

  • Set up the campaign diagram using elements and transitions in the Campaign designer working area (2). Select an element in the Elements area of the designer and drag it to the campaign area to add it to the diagram (Fig. 2).

    Select an element and select “Delete” to delete it.

    Fig. 2 Adding elements and flows to the working area
    Fig. 2 Adding elements and flows to the working area
  • Select elements and tools in the element area (3). The area contains the campaign elements and the following tools:

    • Arrow.” Use this tool to select and move separate elements on the diagram.
    • Lasso.” Use this tool to select multiple elements on the diagram.
    • Space.” Use this tool to move parts of the diagram left/right or up/down. For example, drag the cursor down to move all the elements below the cursor.
      Learn more about these tools: Process designer.
  • Specify parameter values for campaigns and campaign elements in the element setup area (4).

  • Zoom and pan the campaign diagram (5).

Set up the campaign properties

Configure the campaign properties in the element setup area (4). Click anywhere on the campaign designer working area or click the button to open the campaign properties area.

  1. Default campaign execution frequency – determines how often to execute the campaign steps without a set execution period.

    The frequency specified in this parameter applies to:

    • The campaign steps whose incoming flows do not specify an exact time.

    • The Add audience element that adds new participants to the campaign.

    • The Exit from campaign element that removes participants from the campaign.

  2. Time zone – sets the time zone for all the campaign's time frames. For example, the execution time of conditional flows. By default, Creatio sets the campaign time zone to:

    • The time zone of the user who created the campaign.

    • The time zone specified in the “Default TimeZone” (“DefaultTimeZone” code) system setting if there is no time zone set in the user profile.

    If Creatio cannot set the time zone according to the rules above, it will populate the Time zone field of the new campaign with the “(GMT) UTC Time Format” value. You can change the time zone at any time.

    note

    Set up the execution time according to additional time zones within the campaign using the Timer element.

  3. Set the period for campaign emergency stop in case of critical delay – select the checkbox to define the critical delay time. If the campaign does not run during this period, for example, due to application updates, Creatio will stop it automatically, and the campaign owner will receive a notification.

  4. Specify the delay units and their value after selecting the checkbox.

    note

    If you do not select the Set the period for campaign emergency stop in case of critical delay checkbox, the default campaign frequency will equal the time of critical delay.

Use preset campaign steps

Save the element settings to reuse them in any campaign when setting up similar steps. This streamlines the campaign setup.

note

Save and reuse the settings of the Add audience element that adds contacts from the “Sales-ready” dynamic folder to the campaign.

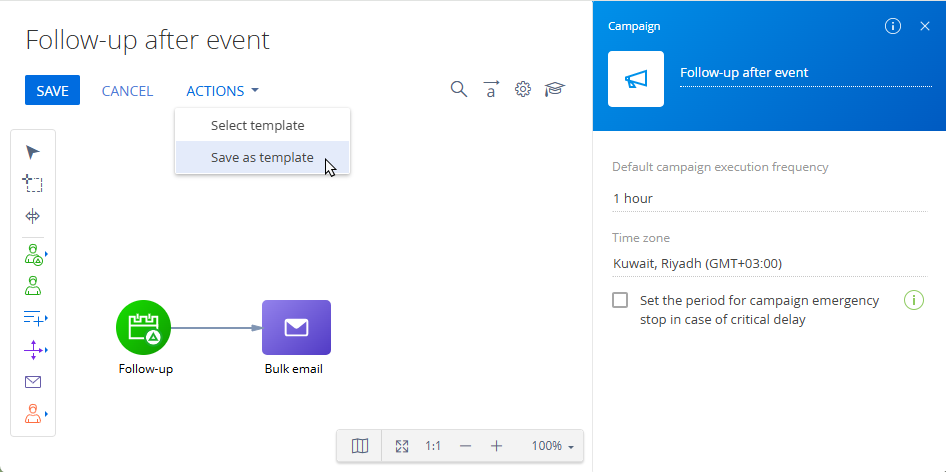

Create an element template

  1. Drag the Add audience element to the campaign diagram and fill out its properties:
    1. Select an object (entity) that holds the campaign audience data – “Contact.”
    2. Specify which records will be converted to the campaign audience – “Records in a specific folder.”
    3. Which folder to add participants from? – “Sales-ready.” Read more: The Add audience element.
  2. Click Save (Fig. 3). This will open a dialog box.
Fig. 3 Save the element settings
Fig. 3 Save the element settings
  1. Enter the template name and click OK in the box (Fig. 4).
Fig. 4 Save the element template
Fig. 4 Save the element template

As a result, Creatio will save the template to the Campaign element templates lookup. You will be able to reuse the template during the campaign setup.

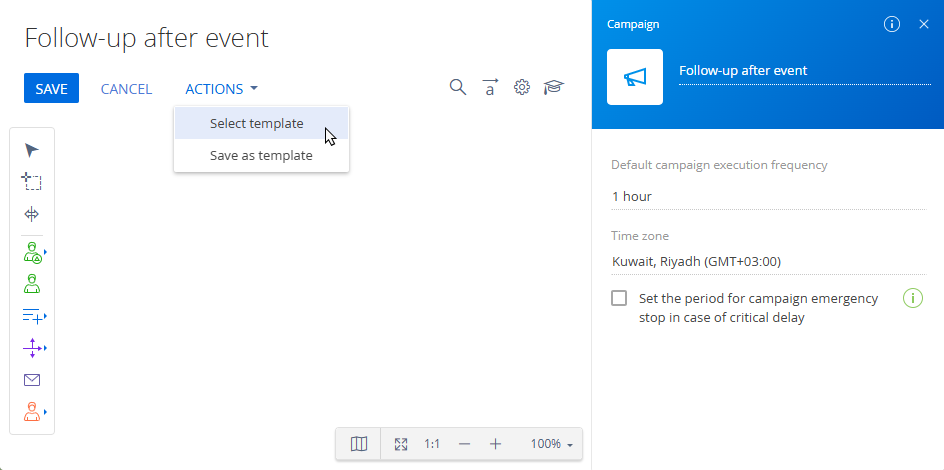

Use a preset element in the campaign

  1. Add the element to the diagram and click Select from lookup in the element settings (Fig. 5).
Fig. 5 Add the template from the lookup
Fig. 5 Add the template from the lookup
  1. Select the relevant template from the list.

As a result, the Campaign designer will apply the template settings to the element.

This feature copies the element settings as opposed to the element itself. As such, you must create a new element of the corresponding type and load the template settings every time when using the preset step.
