Freedom UI Designer is a visual drag-and-drop editor that lets you create and set up a fully responsive app layout (including mobile). You can create UIs from ready layout templates, such as pages with tabs and dashboards. You can also create a custom UI of any structure from scratch. Set up the pages in the new Freedom UI framework, which lets you modify the appearance of elements, manage data sources, and place page components arbitrarily.
Work in the Freedom UI Designer using no-code tools. UI design involves structuring the page with layout elements: tabs, areas, and columns. Depending on the information you want to display on the page, you can also set up charts, add fields, lists, buttons, and other components.
To begin with the setup of Freedom UI pages, click the button in the top right of the current app page → Edit page.

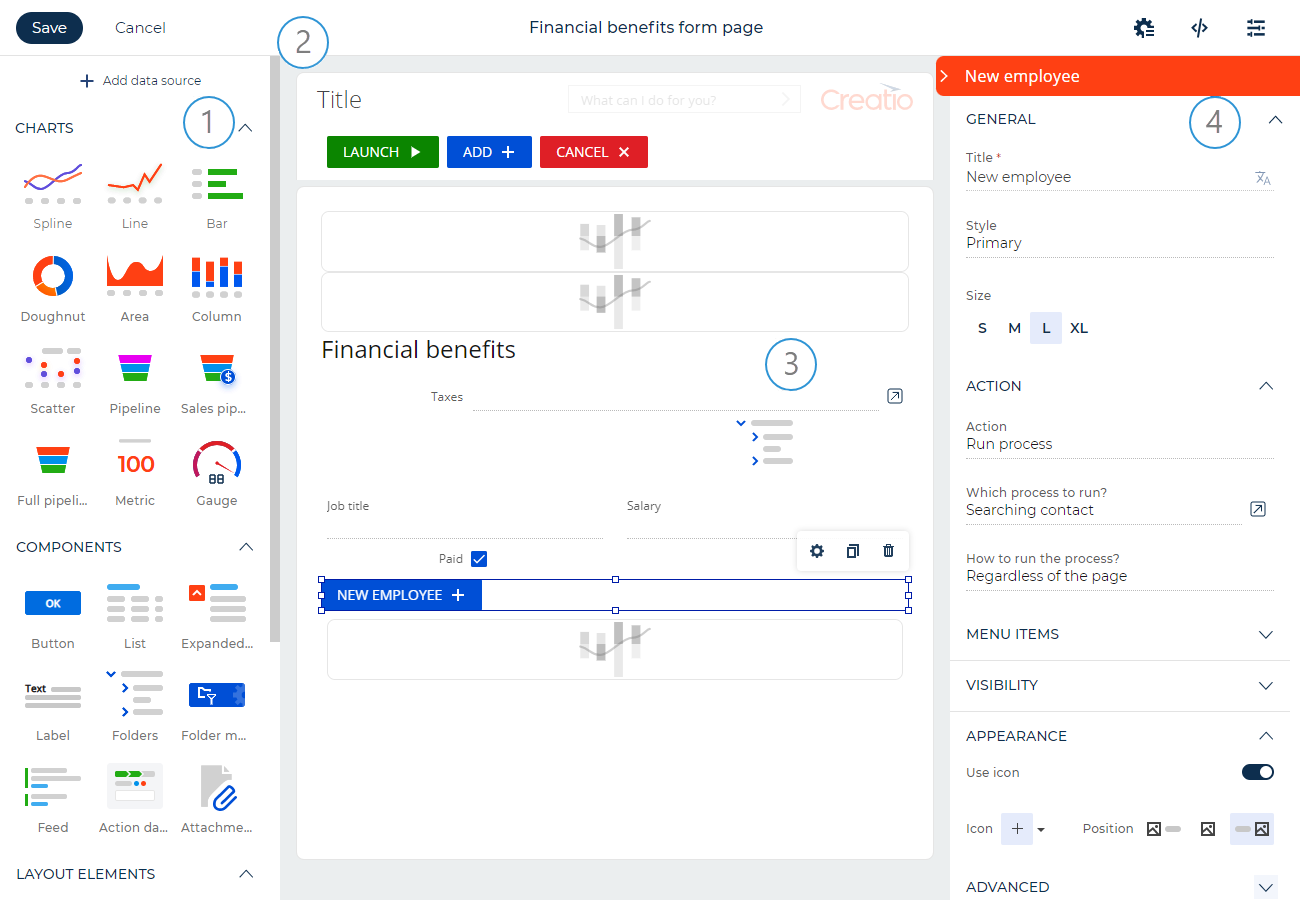

This opens the Freedom UI Designer (Fig. 1).
Element library (1). The library contains the tools required to set up a custom UI.
Action panel (2). Use the action panel to save the page design, cancel the changes, set up the business rules, open the source code and page property settings.
Canvas (3). The working area of the Freedom UI Designer. Drag elements from the library to the canvas to set up the page structure.
Setup area (4). Use the setup area to manage the properties of visual components, the behavior of buttons, expansion panels, charts, etc. Learn more about the settings in the description of each element. To open the setup area, double-click the relevant element or select the element on the canvas and click .
UI Designer elements
View the elements of the Designer in the table below:
Element group that manages the page data source: the object of the section where the page is located.
|Charts||Elements that visualize statistics. The following chart types are available: spline, line, bar, doughnut, area, column, scatter, pipeline, sales pipeline, full pipeline, metric, gauge.|
|Components||Elements that execute target page actions and solve a number of other problems: button, label, list, folders, action panel, etc.|
|Layout elements||Elements that structure the page: expansion panels, tabs, toggle panels, grid containers, flex containers.|
App pages can accept single or multiple data sources. For example, a data source for a record page is a specific object. Creatio adds a data source automatically when you create an app. You can add an existing source or create a new source when you add an app page.
To add a new data source:
- Click Add data source.
- Select “New data source.” This opens a window.
- Fill out the Name and Description fields of the data source in the window.
As a result, Creatio will add an object and connect it to the page as a data source. The Freedom UI Designer will display the data source in the Data group. The Code field will be populated automatically (Fig. 2).
You can display data and enable users to enter data using fields and inputs.
Use fields to display data and enable users to enter data. When you set up fields, Creatio adds and modifies the corresponding attributes of the data model. After you set up a field and save the page, you can remove the field from the canvas without removing the corresponding attributes of the data model. To add existing fields to the page, drag them from the Data area to the relevant part of the canvas.
Creatio specifies the data source automatically. You can change it in the Advanced section of the field setup area if needed. If the new data source is a different attribute of the page data model, the field on the canvas changes to the field bound to the specified attribute. If the new data source is an attribute of a related object, Freedom UI Designer converts the field to an input.
You can add the following field types to the page in the UI Designer:
- Text. Enables users to enter letters, digits, and other characters.
- Number. Enables users to enter integers or fractions.
- Checkbox. Enables users to select either of the two values: “True” or “False.” “True” value is a selected checkbox.
- Dropdown. Enables users to select values from a set list of options stored in a lookup or other data source. You can add a new lookup object when you add this field.
- Date/Time. Enables users to select date and/or time, depending on the selected format.
- Rich text. Enables users to enter rich text content, including clickable links, images, and tables. For example, this is useful for writing comments or knowledge base articles.
- Phone. Enables users to enter phone numbers. Functionally identical to the “Phone number” format type of the text field. Can apply the phone number pattern. If Creatio is integrated with a phone service, users can click the phone number to initiate a call from the communication panel. Otherwise, clicking the field runs the application that handles phone calls.
- Email. Enables users to enter email addresses as clickable “mailto:” links that are opened by the default email client. Can validate the email address format.
- URL. Enables users to enter clickable URLs.
- Autonumber. Numbers new records automatically starting from 1, both when a user adds a record and a business process or integration add it. You can set the number prefix and change the quantity of digits in the number. Creatio reserves the number when you click a button that adds records. When you click a button that adds records again, Creatio reserves the subsequent number, even if the previous record was not saved.
- Image. Enables users to upload or view images. Can display images from different sources, for example, Creatio database or CDN.
- Color. Enables users to specify a color value. For example, this is useful for product pages.
The Freedom UI Designer supports various properties that provide flexible field setup options. Learn more about setting up fields in a separate guide: Fields and inputs.
Use Input layout elements to display data and enable users to enter data. When you set up inputs, Creatio does not modify the attributes of the data model.
Specify the data source manually in the Advanced section of the input setup area. Inputs accept data from attributes of related objects. If you specify an attribute of the page data model, Freedom UI Designer converts the input on the canvas to a field.
Input setup is mostly similar to the field setup. However, input setup does not modify the structure of the data model.
The input types you can add correspond to field types except for the unique Slider input. It displays an integer within a range and enables users to slide the value up and down with a preset step value. Learn more about setting up the Slider in a separate article: Set up a [Slider] input.
Chart functionality in Freedom UI is mostly similar to analytics in the Dashboard section of the main Creatio application. However, Freedom UI charts have some unique features:
- When you drill down the chart data, you can customize the data list similarly to a Freedom UI section list as well as search for specific records (Fig. 5). Learn more about customizing Freedom UI lists in a separate article: Manage a list.
- You can export chart and pivot table data to Excel to process data easier. To do this, expand the dashboard and select Export to Excel in the context menu. The browser will download the data file to your computer (Fig. 6).
- For charts that have multiple series, you can customize the header color and series color individually. Use the Chart color and Style fields to do this, respectively (optional) (Fig. 7).
- You can select from several fill options in the Chart style field for “Metric” and “Chart” dashboard headings (Fig. 8).
- The “Pie chart” type is replaced with the “Doughnut chart” type. Set up this chart similar to the pie chart (Fig. 9).
You can filter chart and metric data by the parameters of their location page. Configure the filter in the How to associate with page data field group. The setup process is similar to the How to associate with section data field group. For example, you can set up a budget composition chart on a request page and limit the chart data to the request whose page the user opens.
Use the Button component to execute a page action. The following actions are available:
- Open new record. Opens the form page of a new record that belongs to any Creatio object. If different record types use different pages, for example, Activities section, you can specify the page to open. You can also create and edit the form page for any Creatio object as part of the button setup. The action can also populate the form page fields with specific values if needed.
- Open existing record. Opens the form page of a specific record that belongs to any Creatio object. If different record types use different pages, for example, the Activities section, you can specify the page to open. You can also create and edit the form page for any Creatio object as part of the button setup.
- Open specific page. Opens any Freedom UI page, including list pages and homepages. You can create and edit the page to open as part of the button setup.
- Save data. Saves changes without closing the page. Applies to all page data sources, for example, fields and editable lists.
- Cancel changes. Cancels changes without closing the page. Applies to all page data sources, for example, fields and editable lists.
- Refresh data. Refreshes data of a list object, attachment list, approval list, or gallery without refreshing the entire page.
- Close page. Returns to the previous page the browser tab had open. If the current page is the first page the browser tab has open, no action is executed.
- Run process. Runs the latest version of a business process. You can create and edit the process to run as part of the button setup.
- Upload file. Uploads a file to an attachment list. You can select from attachment lists that are present on the page. The upload mechanism is pre-configured and non-editable.
- Data import. Imports data to any Creatio object. The import mechanism is pre-configured and non-editable.
- Export to Excel. Downloads list data as an *.xlsx file. You can select from lists that are present on the page except for attachment lists. The export mechanism is pre-configured and non-editable.
- Set up access rights. Configures access permissions to the form page where the button is placed. Works only on form pages. The permission setup mechanism is pre-configured and non-editable.
You can customize button caption, visual style, and size as well as add an icon to a button. You can also set up multi-level button menus. A menu item title can contain text, an icon, or both. You can copy existing menu items to accelerate the setup process. You can also copy existing buttons together with their settings.
Learn more about setting up buttons in a separate article: Set up buttons.
Use the List component to add a list of the selected object’s data based on pre-configured filters. You can add, hide, freeze, and resize list columns while working in an app. Creatio saves the list settings in the user profile, therefore the settings are applied every time an app is opened. It is also possible to apply list settings to every app user. Restore the default settings in a single click via the Reset to default settings button. Learn more about managing lists in a separate article: Manage a list.
Expanded list is an Expansion panel layout element that has List, Search, and multiple Button components that control the list attached. The setup process of the expansion panel and components attached to it is identical to standalone elements.
Use the Label component to add arbitrary text to the page, create individual headings for element groups, or display data of the current user contact. Learn more about setting up labels in a separate article: Set up a [Label] component.
Use the Folders component to configure the folder structure that segments records by the specified filters. Manage Freedom UI folders similarly to folders in the classic Creatio UI. Learn more in a separate article: Folders.
Folder management menu
Use the Folder management menu component to enable users to open the page folder tree as well as reach favorite folders quickly. If the page contains the Folders component without the management menu, users will be unable to reopen the folder tree after closing it.
Use the Feed component to enable users to post and read comments that support rich text and user mention via “@.” Authors can edit or delete their posts. You can select between the following feed types:
- “Record.” Display posts and comments connected to a specific record. For example, a lead.
- “User.” Display the index of posts and comments that mention the current user or those to which the user is subscribed.
Use the Action dashboard component to edit the dynamic case that organizes the workflow in the app. You can define the list of actions users can execute directly from the page using a mini page, for example, schedule a task, write an email, summarize the call results, post a message in the record feed.
If the data source is specified in the element setup area (for example, when you add an action dashboard to the canvas, Freedom UI Designer sets the element data source to the page data source automatically), click the Set up cases button to open the Case Designer. Specify the case stages, as well as steps and tasks required to complete the case in the Designer. Learn more in a separate guide: Case Designer workflows.
Use the Attachments component to enable users to upload and download files. You can bind the files to the current record or related objects. You can also tag specific attachments to filter them or display multiple attachment lists on a single page, for example, required request files and additional request files.
The component comprises expansion panel, upload button, refresh button, flex container, and attachment list. Setup procedure for all elements except for the attachment list is identical to standalone elements. Learn more about setting up attachments in a separate article: Set up an [Attachments] component.

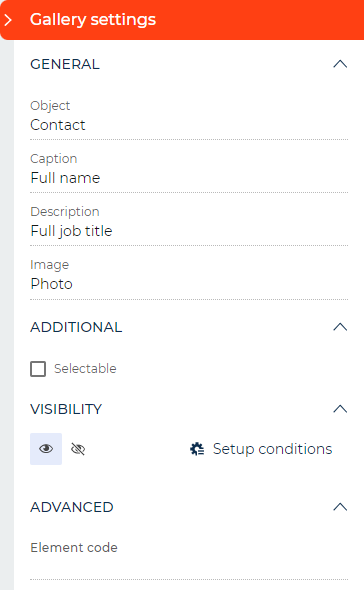

Use the Gallery component to display visual data of any Creatio object on a page. For example, you can display the index of meeting participants or order products as a gallery. Besides images, you can display record caption and brief description text in the gallery (Fig. 19).
Use the Approvals component to enable users to approve or deny records. You can hide the component from the page if the current user has no approvals assigned to them.
The component behavior is pre-configured and non-editable. After you add the component to the page, set up the approval mechanism in a business process or case. Learn more in separate articles: Configure a document approval process, Set up an approval case.
Use the Approvals list component to enable users to view the entire approval process of a specific record as a list to ensure transparency. The component is an Expansion panel element that has Approvals list, Search, and multiple Button components attached. The setup process of the expansion panel and most components attached to it is identical to standalone elements. The behavior of the Approvals list component is pre-configured and non-editable.
Use the Search component to enable users to search for records by all visible columns or specific visible columns in any Freedom UI list, attachment list, or approval list. The Expanded list and Approvals list components include the component by default.
Use the Timeline component to enable users to view the history of communication regarding the record as well as records linked to it in chronological order. Users can like and comment feed records in the timeline.
The component displays the linked records of the following objects:
- Feed messages
The timeline displays the primary display value and creation date of linked records. You can customize the columns to display in the timeline addon of the relevant object using low-code tools. Learn more in the developer documentation: Operations in Creatio IDE.
Use the Timer component to count down to or up from specific date and time in the time zone of the user. For example, this is useful if you want to display the case response deadline. Learn more about setting up timers in a separate article: Set up timers.
Use the Local time component to display the current time within a time zone. You can use any time zone field as a data source. Learn more about setting up local time in a separate article: Set up a [Local time] component.
Account compact profile
Use the Account compact profile component to display main data of an account:
- also known as
- local time
The component behavior is pre-configured and non-editable. The compact profile is available if you have the Customer 360 app installed.
Contact compact profile
Use the Contact compact profile component to display main data of a contact:
- full name
- birth date
- local time
The component behavior is pre-configured and non-editable. The compact profile is available if you have the Customer 360 app installed.

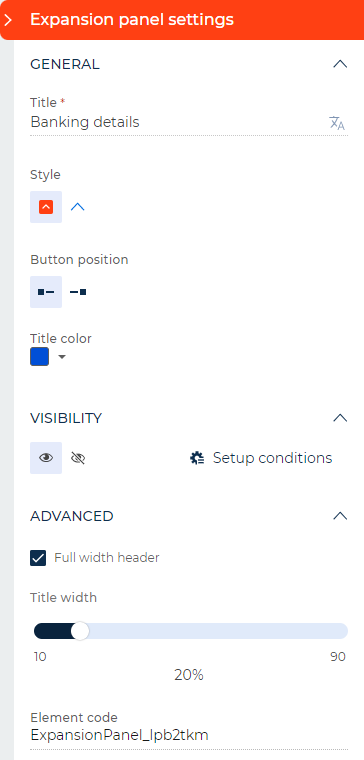

Use the Expansion panel layout element to add page elements grouped by a single criterion. You can attach any elements available in the Freedom UI Designer to the expansion panel title or the area within the expansion panel. Learn more about setting up expansion panels in a separate article: Set up an [Expansion panel] layout element.
You can customize the internal layout of the expansion panel: column number, background color, spacing, etc. To do this, select the area within the expansion panel and click the button. The customization is similar to the Grid container layout element. Learn more about setting up grid containers in a separate article: Set up a [Grid container] layout element.

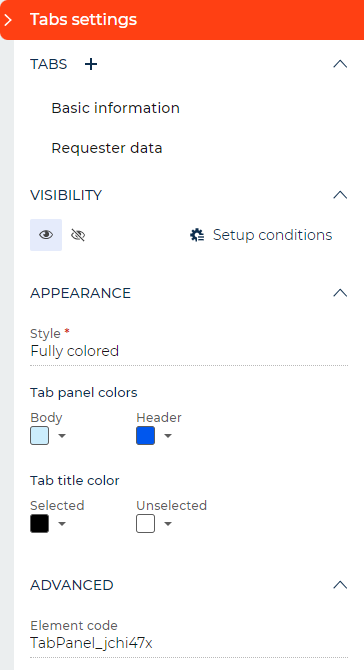

Use the Tabs layout element to add a tab area to the page. The area lets you display content grouped by multiple criteria. That way, you can publish more required information without overcrowding the page. You can reorder tabs and attach any elements available in the Freedom UI Designer to tabs, including other tabs. To do this, drag the tab to the needed position. Learn more about setting up tabs in a separate article: Set up a [Tabs] layout element.
You can customize the internal layout of each tab: column number, background color, spacing, etc. To do this, select the area within a tab and click the button. The customization is similar to the Grid container layout element. Learn more about setting up grid containers in a separate article: Set up a [Grid container] layout element.
Use the Toggle panel layout element to add a tab area to the page. Compared to the similar Tabs element, toggle panel has the following unique features that let you create more advanced page functionality:
- Toggle panel is controlled by buttons you can place anywhere on the page.
- You can click the active tab button to hide the panel. Click any tab button to display the panel again. The panel is hidden by default.
This lets you save more workspace by placing elements that are usually only needed on demand, such as a feed or attachment list.
The element setup process is similar to the Tabs layout element. Learn more about setting up tabs in a separate article: Set up a [Tabs] layout element.
Area and columns
Area and Columns layout elements are different configuration options of the Grid container element. Grid containers have a fixed layout that can contain up to 12 columns. You can attach any Freedom UI element to a grid container, including other grid containers.
Areas let you divide the page visually into multiple sections. Use areas to add page blocks that group any combination of other elements. For example, fields, charts, buttons, and other areas. Use columns to change layout parameters for areas, expansion panels, or tabs flexibly as well as arrange page content vertically.
Learn more about setting up grid containers in a separate article: Set up a [Grid container] layout element.

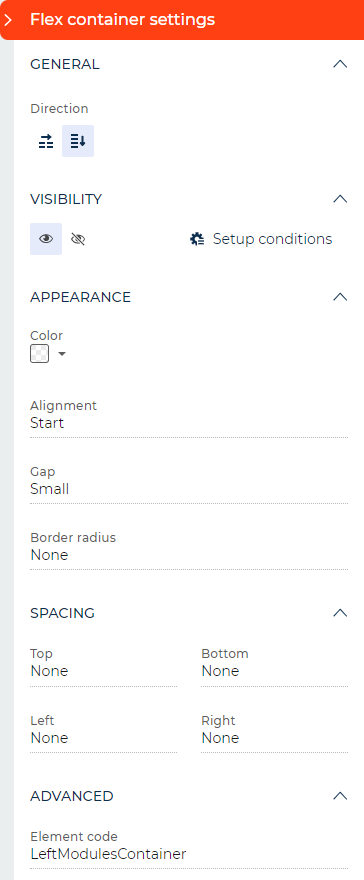

Use flex containers to group elements in a certain direction without binding the elements to a fixed layout. For example, flex containers are a convenient option for button placement.
The Freedom UI Designer includes the following flex container types:
- Flex row. Lets you place elements horizontally. For example, buttons.
- Flex column. Lets you place as many elements as needed vertically.
To transform a flex row into a flex column and vice versa, click the corresponding buttons in the Direction block of the setup area. Learn more about setting up flex containers in a separate article: Set up a [Flex container] layout element.
