Custom UI component implemented using remote module

PDF
Medium

In Creatio, you can expand the out-of-the-box set of Freedom UI page components with custom UI components.

Creatio lets you implement the following custom UI component types:

  • Custom UI component based on a classic Creatio page element. Supported in Creatio 8.0.2 Atlas and later. Learn more in a separate article: Custom UI component based on a classic Creatio page element.
  • Custom UI component implemented using remote module. Supported in Creatio 8.0.3 Atlas and later.

You can implement a custom UI component using remote module in Creatio version 8.0.3 Atlas and later. The feature is available for beta testing.

The development of custom UI component using remote module is based on the Module Federation plugin. The purpose of the Module Federation plugin is to divide the app into multiple smaller modules (components, remote modules) built independently. The plugin lets you develop custom UI components using various frameworks and library versions. Learn more in the official webpack documentation.

Note. When using the Module Federation plugin, you might experience difficulties with managing libraries that register themselves as global variables, for example, lodash.

The project of a remote module has a modular structure. I. e., the business logic and view elements are aggregated into modules, which, in turn, can be aggregated into higher-level modules.

View an example of the CrtCdkModule root project module that contains the CrtInputModule and CrtButtonModule nested modules that have their own view elements on the chart below.

To implement a custom UI component using remote module:

  1. Create an Angular project to develop a custom UI component using remote module.
  2. Create a custom UI component using remote module.
  3. Implement the business logic of the custom UI component using remote module.
  4. Add the custom UI component implemented using remote module to the library of the Freedom UI Designer (optional).
  5. Add the custom UI component implemented using remote module to the Freedom UI page.

1. Create an Angular project to develop a custom UI component using remote module

Develop a custom UI component in a dedicated npm package using an external IDE. This example covers the custom UI component development in Microsoft Visual Studio Code. We recommend utilizing components created using the Angular framework. The framework requires a globally installed interface of the @angular/cli command line. To set up the environment for component development using Angular CLI, run the npm install -g @angular/cli command at the command line terminal of Microsoft Visual Studio Code.

You can create an Angular project to develop a custom UI component using remote module in the following ways:

  • Use a *.zip archive of the Angular project that contains the template of a remote module. View a detailed example that creates an Angular project to develop a remote module in a separate article: Implement custom UI component using remote module.
  • Use the Clio utility.

Create an Angular project to develop a custom UI component using remote module via a *.zip archive

  1. Download and unpack the *.zip archive.

    For Creatio version 8.0.8 and later.

    For Creatio version 8.0.3-8.0.7.

  2. Open the project in Microsoft Visual Studio Code.
  3. Change the <%projectName%> macro of the Angular project name to the name of the package to transfer the remote module. Enter the package name in snake case, for example, process_designer. Change the macro in every project file.
  4. Change the <%vendorPrefix%> prefix macro to the object name prefix, for example, usr. The prefix can contain up to 50 lowercase Latin characters. Change the macro in every project file.
  5. Install the npm modules. To do this, run the npm i command at the command line terminal of Microsoft Visual Studio Code. The installation might take some time.
  6. Install or update the @creatio-devkit/common library (optional).

    • Run the npm install @creatio-devkit/common command at the command line terminal of Microsoft Visual Studio Code to install the release version of the library.
    • Run the npm update @creatio-devkit/common command at the command line terminal of Microsoft Visual Studio Code to update the library version.

As a result, Microsoft Visual Studio Code will create an Angular project to develop a custom UI component using remote module.

View a detailed example that creates an Angular project to develop a custom UI component using remote module in a separate article: Implement custom UI component using remote module.

Create an Angular project to develop a custom UI component using remote module via the Clio utility

  1. Install the Clio utility (performed once). To do this, run the dotnet tool install clio -g command at the terminal of Microsoft Visual Studio Code.
  2. Register a new Creatio instance in Clio. To do this, run the clio reg-web-app someApplicationName -u https://mycreatio.com/ -l SomeLogin -p SomePassword command at the Microsoft Visual Studio Code terminal.

    someApplicationName is the Creatio instance name.

    https://mycreatio.com/ is the Creatio instance URL.

    SomeLogin is the user login to the Creatio instance.

    SomePassword is the user password to the Creatio instance.

  3. Install the cliogate system package into your development environment. To do this, run the clio install-gate someApplicationName command at the Microsoft Visual Studio Code terminal.
  4. Restart your Creatio instance. To do this, run the clio restart someApplicationName command at the Microsoft Visual Studio Code terminal.
  5. Create a new workspace. To do this, run the clio createw command at the Microsoft Visual Studio Code terminal.
  6. Create a project for the remote module. To do this, run the clio ui someApplicationName -v usr --package SomePackageName --empty true command at the Microsoft Visual Studio Code terminal. If the workspace does not contain a package that has the specified name, Microsoft Visual Studio Code creates a new package that has the specified name.

    SomePackageName is the name of the package to implement the remote module.

  7. Install the npm modules. To do this, run the npm i command at the command line terminal of Microsoft Visual Studio Code.
  8. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.
  9. Upload the changes from the workspace into Creatio. To do this, run the clio pushw -e someApplicationName command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will create an Angular project to develop a custom UI component using remote module.

2. Create a custom UI component using remote module

  1. Create an Angular component in the project. To do this, run the ng g c view-elements/some_component_name --view-encapsulation=ShadowDom command at the command line terminal of Microsoft Visual Studio Code.

    view-elements specifies that the Angular component is a view element.

    some_component_name is the custom component name.

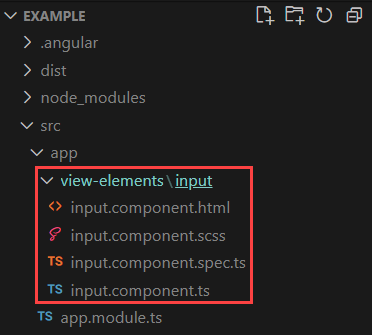

    As a result, Microsoft Visual Studio Code will add the component files to the src/app/view-elements/some_component_name directory.

  2. Specify that the SomeComponentNameComponent component is a view element.

    1. Open the some_component_name.component.ts file.
    2. Flag the component using the CrtViewElement decorator.
    3. Import the functionality of the CrtViewElement decorator from the @creatio-devkit/common library to the component.
    4. Save the file.
    some_component_name.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, OnInit, ViewEncapsulation } from '@angular/core';
    import { CrtViewElement } from '@creatio-devkit/common';

    @Component({
      selector: 'usr-some_component_name',
      templateUrl: './some_component_name.component.html',
      styleUrls: ['./some_component_name.component.scss'],
      encapsulation: ViewEncapsulation.ShadowDom
    })

    /* Add the CrtViewElement decorator to the SomeComponentNameComponent component. */
    @CrtViewElement({
      selector: 'usr-some_component_name',
      type: 'usr.SomeComponentName'
    })

    export class SomeComponentNameComponent implements OnInit {
      constructor() { }

      ngOnInit(): void {
      }
    }

  3. Register the SomeComponentNameComponent view element as a component.

    1. Open the app.module.ts file.
    2. Add the SomeComponentNameComponent view element to the CrtModule decorator.
    3. Register the SomeComponentNameComponent view element as a component, i. e., Angular Element, in the ngDoBootstrap() method of the AppModule root module. Learn more in the Angular documentation.
    4. Save the file.

    app.module.ts file for Creatio version 8.0.8 and later

    app.module.ts file for Creatio version 8.0.3-8.0.7

  4. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the <%projectName%> name specified on step 1.

View a detailed example that creates a custom UI component using remote module in a separate article: Implement custom UI component using remote module.

3. Implement the business logic of the custom UI component using remote module

  1. Implement the required business logic in the component.

    1. Open the some_component_name.component.ts file.
    2. Add the value property to the SomeComponentNameComponent component class. The property manages the component value.
    3. Flag the value property using the Input and CrtInput decorators.
    4. Import the functionality of the Input decorator from the @angular/core library into the component.
    5. Import the functionality of the CrtInput decorator from the @creatio-devkit/common library into the component.
    6. Save the file.
    some_component_name.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, Input, OnInit } from '@angular/core';
    import { CrtInput, CrtViewElement } from '@creatio-devkit/common';
    ...
    export class SomeComponentNameComponent implements OnInit {
      constructor() { }

      /* Add decorators to the value property. */
      @Input()
      @CrtInput()
      /* The component value. */
      public value: some_value_type;

      ngOnInit(): void {
      }
    }

  2. Add the markup of the custom component to the some_component_name.component.html file.
  3. Add the styles of the custom component to the some_component_name.component.scss file.
  4. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the <%projectName%> name specified on step 1.

Since Creatio 8.0.8 Atlas, you can create a custom converter within custom UI component implemented using remote module. Learn more in a separate article: Converters in the custom UI component implemented using remote module.

View detailed examples that implement the business logic of the custom UI component using remote module in separate articles: Implement the business logic of the custom UI component using remote module, Implement the validation in the custom UI component using remote module, Implement a custom converter in the custom UI component using remote module.

4. Add the custom UI component implemented using remote module to the library of the Freedom UI Designer (optional)

We recommend adding the custom UI component implemented using remote module to the library of the Freedom UI Designer if you are going to use the component as part of no-code development.

To add the custom UI component implemented using remote module to the library of the Freedom UI Designer:

  1. Set up the component layout in the library of the Freedom UI Designer.

    1. Open the some_component_name.component.ts file.
    2. Flag the component using the CrtInterfaceDesignerItem decorator that has the toolbarConfig property. The property manages the element layout in the library of the Freedom UI Designer.
    3. Import the functionality of the CrtInterfaceDesignerItem decorator from the @creatio-devkit/common library into the component.
    4. Localize the custom UI component.

      Localize custom UI components implemented using remote module during development to save time spent on translating the finished app. The @creatio-devkit/common library provides the sdk.SysValuesService service of system variables for localization. Use the service to retrieve the current culture from the userCulture system variable.

      Creatio version 8.0.3 Atlas and later lets you perform the following localization actions:

    5. Upload the icon to display in the library of the Freedom UI Designer and specify the path to the icon in the icon property. Make sure the icon meets the requirements listed in a separate article: Requirements for icons of custom UI components.
    6. Save the file.
    some_component_name.component.scss file
    ...
    /* Import the required functionality from the libraries. */
    import { CrtInput, CrtInterfaceDesignerItem, CrtOutput, CrtValidationInfo, CrtValidationInput, CrtViewElement } from '@creatio-devkit/common';
    ...
    /* Add the CrtViewElement decorator to the SomeComponentNameComponent component. */
    @CrtInterfaceDesignerItem({
      /* Manages the element layout in the library of the Freedom UI Designer. */
      toolbarConfig: {
        /* The localizable name of the component. */
        caption: localize('SomeComponentName.Caption'),
        name: 'usr_some_component_name',
        /* The path to the component image. */
        icon: require('!!raw-loader?{esModule:false}!./some_picture_name.svg'),
        defaultPropertyValues: {
          /* The localizable name of the component in the library of the Freedom UI Designer. */
          label: 'Some component name'
        }
      }
    })
    ...

  2. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the <%projectName%> name specified on step 1.

View a detailed example that adds the custom UI component implemented using remote module to the library of the Freedom UI Designer in a separate article: Add the custom UI component implemented using remote module to the library of the Freedom UI Designer.

Localize the metadata

  1. Flag the metadata to localize. To do this, use the localize() function.

    Example that uses the localize() function
    @CrtInterfaceDesignerItem({
      toolbarConfig: {
        /* The localizable name of the component. */
        caption: localize('SomeComponentName.Caption'),
        name: 'usr_some_component_name',
      },
    })

  2. Specify the localizeMetadata() function when calling the bootstrapCrtModule() function. The localizeMetadata() function is required to translate the metadata flagged using the localize() function. The key to translate the value is an incoming parameter of the localizeMetadata() function. The function returns the translated value.

    Example that uses the localizeMetadata() function
    const translateService = this._injector.get(TranslateService);
    bootstrapCrtModule(AppModule, {
      localizeMetadata: (key: string) => translateService.instant(key),
    });


Upload the translations from static content

  1. Find out the URL to upload the translations. To do this, use the __webpack_public_path__ global variable. Learn more in the official webpack documentation.
  2. Implement the mechanism that uploads translations.

    Example that uploads the translations from static content
    declare const __webpack_public_path__: string;

    @NgModule({
      imports: [
        BrowserModule,
        HttpClientModule,
        TranslateModule.forRoot({
          defaultLanguage: 'en-US',
          loader: {
            provide: TranslateLoader,
            useFactory: (httpClient: HttpClient) => {
              return new TranslateHttpLoader(
                httpClient,
                __webpack_public_path__ + '/assets/i18n/',
                '.json'
              );
            },
            deps: HttpClient],
          },
        }),
      ],
      ...


5. Add the custom UI component implemented using remote module to the Freedom UI page

  1. Create a custom app. To do this, follow the instruction in the user documentation: Manage apps.
  2. Set up Creatio for file system development. To do this, follow the instruction in a separate article: External IDEs.
  3. Download the packages to the file system.

    You can download the packages to the file system in the following ways:

  4. Open the needed page in the Freedom UI Designer.
  5. Add the custom UI component to the Freedom UI page.
  6. Click the button in the action panel of the Freedom UI Designer. After you save the page settings, Creatio opens the source code of the Freedom UI page.
  7. Bind the value property of the custom UI component to the corresponding model attribute in the viewConfigDiff schema section.

    viewConfigDiff schema section
    viewConfigDiff: /**SCHEMA_VIEW_CONFIG_DIFF*/[
        ...,
        {
            "operation": "insert",
            "name": "Input",
            "values": {
                ...,
                /* The property that defines the element type. */
                "type": "usr.Input",
                /* The property that defines the component value. Bound to the SomeAttributeName attribute. */
                "value": "$SomeAttributeName"
            },
            ...
        }
    ]/**SCHEMA_VIEW_CONFIG_DIFF*/,

  8. Click Save on the client Module Designer’s toolbar.

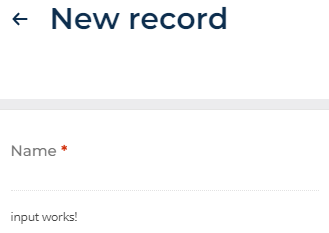

As a result, Creatio will add the custom UI component implemented using remote module to the Freedom UI page.

View a detailed example that adds the custom UI component implemented using remote module to the Freedom UI page in a separate article: Implement custom UI component using remote module.

Download the packages to the file system using the Creatio IDE

  1. Select Download packages to the file system in the File system development mode action group on the toolbar of the Creatio IDE.

  2. Create a Files/src/js directory in the file system’s app package directory.
  3. Copy the build from the dist project directory to the Files/src/js directory. The path to the project build is as follows: Files/src/js/<%projectName%>. The <%projectName%> parameter must match the value specified on step 1.
  4. Compile the configuration. To do this, follow the instruction in a separate article: Operations in Creatio IDE.

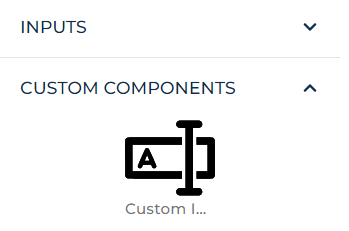

    As a result, Creatio will display the custom UI component in the Custom components library group of the Freedom UI Designer.

Download packages to the file system using the Clio utility

  1. Copy the build from the dist project directory to the Files/src/js directory. The path to the project build is as follows: Files/src/js/<%projectName%>. The <%projectName%> parameter must match the value specified on step 1.
  2. Install the package into the app. To do this, run the clio install SomePackageName -e someApplicationName command at the Microsoft Visual Studio Code terminal.
Implement custom UI component using remote module
Medium

The example is relevant to Creatio version 8.0.3 and later. The feature is available for beta testing.

Example. Add a custom UI component to the record page of the custom Requests section. Implement the custom UI component using a remote module created in Angular framework.

1. Create an Angular project to develop a custom UI component using remote module

Create an Angular project to develop a custom UI component using a *.zip archive of an Angular project that contains the template of a remote module.

To create an Angular project using a *.zip archive:

  1. Download and unpack the *.zip archive.

    For Creatio version 8.0.8 and later.

    For Creatio version 8.0.3-8.0.7.

  2. Open the project in Microsoft Visual Studio Code.
  3. Change the <%projectName%> macro of the Angular project name to sdk_remote_module_package in every project file.
  4. Change the <%vendorPrefix%> prefix macro to usr in every project file.
  5. Install the npm modules. To do this, run the npm i command at the command line terminal of Microsoft Visual Studio Code. The installation might take some time.
  6. Update the @creatio-devkit/common library version. To do this, run the npm update @creatio-devkit/common command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will create an Angular project to develop a custom UI component using remote module.

2. Create a custom UI component using remote module

  1. Create an Angular component in the project. To do this, run the ng g c view-elements/input --view-encapsulation=ShadowDom command at the command line terminal of Microsoft Visual Studio Code.

    As a result, Microsoft Visual Studio Code will add the InputComponent component files to the src/app/view-elements/input project directory.

  2. Specify that the InputComponent component is a view element.

    1. Open the input.component.ts file.
    2. Flag the component using the CrtViewElement decorator.
    3. Import the required functionality from the libraries to the component.
    4. Save the file.
    input.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, OnInit, ViewEncapsulation } from '@angular/core';
    import { CrtViewElement } from '@creatio-devkit/common';

    @Component({
      selector: 'usr-input',
      templateUrl: './input.component.html',
      styleUrls: ['./input.component.scss'],
      encapsulation: ViewEncapsulation.ShadowDom
    })

    /* Add the CrtViewElement decorator to the InputComponent component. */
    @CrtViewElement({
      selector: 'usr-input',
      type: 'usr.Input'
    })

    export class InputComponent implements OnInit {
      constructor() { }

      ngOnInit(): void {
      }
    }

  3. Register the InputComponent view element as a component.

    1. Open the app.module.ts file.
    2. Add the InputComponent view element to the CrtModule decorator.
    3. Register the InputComponent view element as a component, i. e., Angular Element, in the ngDoBootstrap() method of the AppModule root module.
    4. Save the file.

    app.module.ts file for Creatio version 8.0.8 and later

    app.module.ts file for Creatio version 8.0.3-8.0.7

  4. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the sdk_remote_module_package name.

3. Add the custom UI component implemented using remote module to the Freedom UI page

  1. Use the Records & business processes template to create a custom Requests app. To do this, follow the instruction in the user documentation: Manage apps.
  2. Set up Creatio for file system development. To do this, follow the instruction in a separate article: External IDEs.
  3. Download the packages to the file system using the Creatio IDE. On the Creatio IDE toolbar, select Download packages to the file system in the File system development mode action group.

  4. Create a Files/src/js directory in the file system’s UsrRequests package directory.
  5. Copy the build from the dist project directory to the Files/src/js directory. The path to the project build is as follows: Files/src/js/sdk_remote_module_package.
  6. Compile the configuration. To do this, follow the instruction in a separate article: Operations in Creatio IDE.
  7. Open the Requests app page workspace and go to the Requests form page page.
  8. Click the button in the action panel of the Freedom UI Designer. After you save the page settings, Creatio opens the source code of the Freedom UI page.
  9. Add the configuration object of the custom component to the viewConfigDiff schema section.

    viewConfigDiff schema section
    viewConfigDiff: /**SCHEMA_VIEW_CONFIG_DIFF*/[
        ...,
        {
            "operation": "insert",
            "name": "UsrInput",
            "values": {
                "layoutConfig": {
                    "column": 1,
                    "row": 2,
                    "colSpan": 1,
                    "rowSpan": 1
                },
                /* The property that defines the element type. */
                "type": "usr.Input",
            },
            "parentName": "SideAreaProfileContainer",
            "propertyName": "items",
            "index": 1
        }
    ]/**SCHEMA_VIEW_CONFIG_DIFF*/,

    Complete source code of the page schema
  10. Click Save on the client Module Designer’s toolbar.

Outcome of the example

To view the outcome of the example:

  1. Open the Requests app page and click Run app.
  2. Click New on the Requests app toolbar.

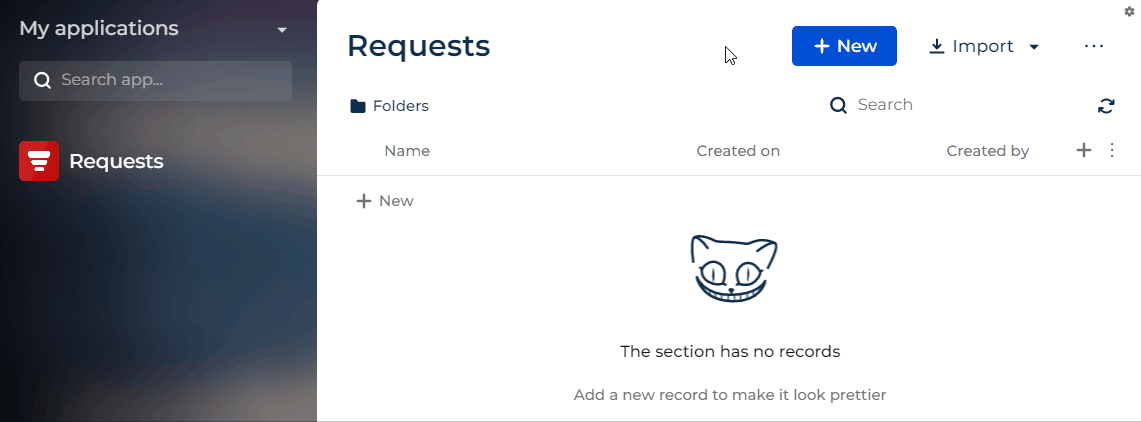

As a result, Creatio will display the custom UI component on the request page. The custom UI component is implemented using a remote module created in Angular framework.

You can proceed to implement the business logic. For example, you can implement validation or a custom converter. Learn more in separate articles: Implement the business logic of the custom UI component using remote module, Implement the validation in the custom UI component using remote module, Implement a custom converter in the custom UI component using remote module.

Implement the business logic of the custom UI component using remote module
Medium

The example is relevant to Creatio version 8.0.3 and later.

Example. Add a custom UI component to the record page of the custom Requests section. The custom UI component must be an input. The name and value of the custom input must match the Name field. Implement the custom UI component using a remote module created in Angular framework.

1. Implement a custom UI component using remote module

To implement a custom UI component using remote module, follow the instruction in a separate article: Implement custom UI component using remote module.

2. Implement an input within remote module

  1. Implement an input in the component.

    1. Open the input.component.ts file.
    2. Add the value property to the InputComponent component class. The property manages the input value.
    3. Flag the value property using the Input and CrtInput decorators.
    4. Add the label property to the InputComponent component class. The property manages the input name.
    5. Flag the label property using the Input and CrtInput decorators.
    6. Import the required functionality from the libraries into the component.
    7. Save the file.
    input.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, Input, OnInit } from '@angular/core';
    import { CrtInput, CrtViewElement } from '@creatio-devkit/common';
    ...
    export class InputComponent implements OnInit {
      constructor() { }

      /* Add decorators to the value property. */
      @Input()
      @CrtInput()
      /* The input value. */
      public value: string = '';

      /* Add decorators to the label property. */
      @Input()
      @CrtInput()
      /* The input name. */
      public label!: string;

      ngOnInit(): void {
      }
    }

  2. Track changes of input values.

    1. Open the input.component.ts file.
    2. Add the EventEmitter<string>() event to the InputComponent component class. The event tracks input value changes.
    3. Flag the EventEmitter<string>() using the Output and CrtOutput decorators.
    4. Import the required functionality from the libraries into the component.
    5. Save the file.
    input.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, EventEmitter, Input, OnInit, Output } from '@angular/core';
    import { CrtInput, CrtOutput, CrtViewElement } from '@creatio-devkit/common';
    ...
    export class InputComponent implements OnInit {
      ...
      /* Add decorators to the EventEmitter<string>() event. */
      @Output()
      @CrtOutput()
      /* Track input value changes. */
      public valueChange = new EventEmitter<string>();
      ...
    }

    Complete source code of the input.component.ts file
  3. Add the markup of the custom component.

    1. Open the input.component.html file.
    2. Add the markup.
    3. Save the file.
    input.component.html file
    <div class="wrapper">
        <label class="label">{{label}}</label>
        <input
            #input
            class="input"
            type="text"
            [value]="value"
            (keyup)="valueChange.emit(input.value)"
        />
    </div>

  4. Add the styles of the custom component.

    1. Open the input.component.scss file.
    2. Add the styles.
    3. Save the file.
    input.component.scss file
    .wrapper {
        display: flex;
        flex-direction: row;
        gap: 10px;
        padding: 10px;
        align-items: center;
    }

  5. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the sdk_remote_module_package name.

3. Add the input to the Freedom UI page

  1. Add the custom UI component implemented using remote module to the Freedom UI page. To do this, follow the instruction in a separate article: Implement custom UI component using remote module.
  2. Add the input implemented in remote module to the viewConfigDiff schema section.

    • Bind the label property of the UsrInput element to the localizable string of the Name field name.
    • Bind the value property of the UsrInput element to the $UsrName model attribute.
    viewConfigDiff schema section
    viewConfigDiff: /**SCHEMA_VIEW_CONFIG_DIFF*/[
        ...,
        {
            "operation": "insert",
            "name": "UsrInput",
            "values": {
                ...,
                /* The property that defines the input name. Bound to the UsrName attribute. */
                "label": "$Resources.Strings.UsrName",
                /* The property that defines the input value. Bound to the UsrName attribute. */
                "value": "$UsrName",
            },
            ...
        }
    ]/**SCHEMA_VIEW_CONFIG_DIFF*/,

    Complete source code of the page schema
  3. Click Save on the client Module Designer’s toolbar.

Outcome of the example

To view the outcome of the example:

  1. Open the Requests app page and click Run app.
  2. Click New on the Requests app toolbar.
  3. Enter "Test" in the Name input.

As a result, Creatio will display the custom input on the request page. The name and value of the custom input match the Name field. The input is implemented using a remote module created in Angular framework.

You can set up input validation if needed. Learn more in a separate article: Implement the validation in the custom UI component using remote module.

Implement the validation in the custom UI component using remote module
Medium

The example is relevant to Creatio version 8.0.3 and later.

Example. Add a validator that checks whether the custom UI component is filled out to the record page of the custom Requests section. The custom UI component must be an input. Implement the custom UI component using a remote module created in Angular framework.

1. Implement a custom UI component using remote module

To implement a custom UI component using remote module, follow the instruction in a separate article: Implement custom UI component using remote module.

2. Implement an input within remote module

To implement an input within remote module, follow the instruction in a separate article: Implement the business logic of the custom UI component using remote module.

3. Implement the input validation

  1. Add the validity flag of the bound attribute to the component.

    1. Open the input.component.ts file.
    2. Add the valueValidationInfo property to the InputComponent component class. The property displays information that the bound attribute is invalid.
    3. Flag the valueValidationInfo property using the Input and CrtValidationInput decorators.
    4. Import the required functionality from the libraries into the component.
    5. Save the file.
    input.component.ts file
    /* Import the required functionality from the libraries. */
    import { Component, EventEmitter, Input, OnInit, Output } from '@angular/core';
    import { CrtInput, CrtOutput, CrtValidationInfo, CrtValidationInput, CrtViewElement } from '@creatio-devkit/common';
    ...
    export class InputComponent implements OnInit {
      ...
      /* Add the decorators to the valueValidationInfo property. */
      @Input()
      @CrtValidationInput()
      /* Display information that the input value is invalid. */
      public valueValidationInfo!: CrtValidationInfo;
      ...
    }

    Complete source code of the input.component.ts file
  2. Add the markup of the custom component if the input value is invalid.

    1. Open the input.component.html file.
    2. Add the markup.
    3. Save the file.
    input.component.html file
    <div class="wrapper">
        <label class="label">{{label}}</label>
        <input
            ...
            [class.invalid]="
            valueValidationInfo &&
            !valueValidationInfo.valid && valueValidationInfo.touched
            "
            ...
        />
    </div>

    Complete source code of the input.component.html file
  3. Add the styles of the custom component.

    1. Open the input.component.scss file.
    2. Add the markup.
    3. Save the file.
    input.component.scss file
    .wrapper {
        ...
        .input.invalid {
            background-color: #FDD8CF;
        }
    }

    Complete source code of the input.component.scss file
  4. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the sdk_remote_module_package name.

Outcome of the example

To view the outcome of the example:

  1. Open the Requests app page and click Run app.
  2. Click New on the Requests app toolbar.
  3. Enter "Test" in the Name input.
  4. Clear the custom input.

As a result, Creatio will display the custom input on the request page. The name and value of the custom input match the Name field. The input is implemented using a remote module created in Angular framework.

You can proceed to add the custom UI component implemented using remote module to the Freedom UI page. Learn more in a separate article: Add the custom UI component implemented using remote module to the library of the Freedom UI Designer.

Add the custom UI component implemented using remote module to the library of the Freedom UI Designer
Medium

The example is relevant to Creatio version 8.0.3 and later.

Example. Add the custom UI component to the library of the Freedom UI Designer. Implement the custom component using a remote module created in Angular framework. Use the image provided below.

1. Implement a custom UI component using remote module

To implement a custom UI component using remote module, follow the instruction in a separate article: Implement custom UI component using remote module.

2. Implement an input within remote module

To implement an input within remote module, follow the instruction in a separate article: Implement the business logic of the custom UI component using remote module.

3. Implement the input validation

To implement the input validation, follow the instruction in a separate article: Implement the validation in the custom UI component using remote module.

4. Add the custom UI component to the library of the Freedom UI Designer

  1. Set up the component layout in the library of the Freedom UI Designer.

    1. Open the input.component.ts file.
    2. Flag the component using the CrtInterfaceDesignerItem decorator that has the toolbarConfig property. The property manages the element layout in the library of the Freedom UI Designer.
    3. Import the required functionality from the libraries into the component.
    4. Upload the image to display in the library of the Freedom UI Designer and specify the path to the image in the icon property. In this example, the image is in the input directory.
    5. Transfer the icon in the string format. To do this, run the npm install raw-loader --save-dev command at the command line terminal of Microsoft Visual Studio Code.
    6. Save the file.
    input.component.ts file
    ...
    /* Import the required functionality from the libraries. */
    import { CrtInput, CrtInterfaceDesignerItem, CrtOutput, CrtValidationInfo, CrtValidationInput, CrtViewElement } from '@creatio-devkit/common';
    ...
    /* Add the CrtViewElement decorator to the InputComponent component. */
    @CrtInterfaceDesignerItem({
      /* Manage the element layout in the library of the Freedom UI Designer. */
      toolbarConfig: {
        caption: 'Custom Input',
        name: 'CustomInput',
        /* The path to the component image. */
        icon: require('!!raw-loader?{esModule:false}!./icon.svg'),
        defaultPropertyValues: {
          label: 'Custom input'
        }
      }
    })
    ...

    Complete source code of the input.component.ts file
  2. Build the project. To do this, run the npm run build command at the command line terminal of Microsoft Visual Studio Code.

As a result, Microsoft Visual Studio Code will add the build to the dist directory of the Angular project. The build will have the sdk_remote_module_package name.

Outcome of the example

To view the outcome of the example, open the Requests form page page in the working area of the Requests app page.

As a result, Creatio will display the Custom input component in the Custom components library group of the Freedom UI Designer.

Creatio will display the custom UI component when you add it to the canvas of the Freedom UI Designer as well.
