Object

A configuration element of the Object type is a business entity that lets you declare a new ORM model class on the server core level. If you create an object, a new table with the same name and the same set of columns as the object is created on the database level. In other words, a Creatio object is a system view of a physical database table in most cases. The purpose of the object is to enable back-end Creatio development.

The items of the Add drop-down list in the toolbar of the Configuration section workspace represent the object types you can add in Creatio IDE.

View the object types in the figure below.

Learn more about configuration element types in a separate article: Operations in Creatio IDE.

The Object type schema in the Type drop-down list in the toolbar of the Configuration section workspace represents the object. The object schema describes the list of object columns, indexes, and methods. Creatio platform does not limit the number of object columns. The number of object columns is limited by the maximum number of columns in the tables of the client database.

View the type of the object schema in the figure below.

Learn more about configuration element types in a separate article: Operations in Creatio IDE.

Implement an object

The Object schema type represents the object.

To implement an object:

1. Go to the Configuration section and select a custom package to add the schema.

2. Click Add → Object in the section list toolbar.



3. Fill out the schema properties in the Object Designer.

   The main schema properties are as follows:

   • Code is the schema name. Required. Starts with the prefix specified in the Prefix for object name (SchemaNamePrefix code) system setting, Usr by default. Can contain Latin characters and digits. The object name can contain up to and including 128 characters. Oracle databases version 12.2 and earlier do not accept objects that have names longer than 30 characters. When a configuration element schema is created, the prefix specified in the Prefix for object name (SchemaNamePrefix code) system setting is added to the current field automatically. Creatio checks for the prefix and whether it matches the system setting value when saving the schema properties. If the prefix is missing or does not match, the user receives a corresponding notification.
   • Title is the localizable schema title. Required. The title of the configuration element schema is generated automatically and matches the value of the Code property without the prefix.
   • Package is the custom package where you create the schema. The property is populated automatically and non-editable.
   • Description is the localizable schema description.


4. Select the parent object in the Object Designer.

   For the object to inherit the functionality of a different object, select the schema of the object to inherit in the Parent object property’s drop-down list. For example, to inherit the functionality of the BaseEntity object’s base schema, specify the BaseEntity schema as the parent object. Creatio adds columns inherited from the parent object to the Inherited columns property of the object schema automatically.


5. Select the column that corresponds to the object ID in the Object Designer. Id is the system column that serves as the primary key in the database table. Required. To do this, follow the guide in a different section: Specify the object ID.
6. Add an object index in the Object Designer (optional). To do this, follow the guide in a different section: Add an object index.
7. Set up cascade connection in the Object Designer (optional) To do this, follow the guide in a different section: Set up the cascade connection.

8. Click Publish on the Object Designer’s toolbar to create a corresponding table in the database.

   You can use the Publish button to generate the static content and update the database structure. In this case, the configuration is not compiled. This accelerates the development of objects and replacing objects. The object compilation on publishing is required if the embedded process of the object was saved while editing but not published in the Process Designer. To compile the configuration, generate the static content, and update the database structure, select Publish and compile in the drop-down list of the Publish button.

Specify the object ID

Since a Creatio object is a database table view, it must contain the ID column.

The object ID is specified the following ways:

• If the Parent object property contains a base object, Creatio populates the Id property automatically.
• If the Parent object property contains a custom object, fill out the Id property manually.

To add a custom ID:

1. Click → Other → Unique identifier in the properties area of the Columns node’s context menu.

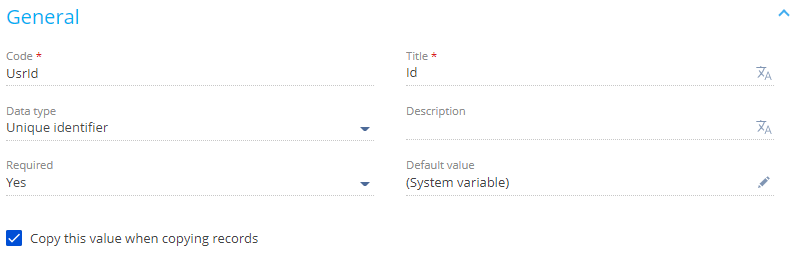

2. Fill out the column properties in the Object Designer.

   The main column properties are as follows:


   • Code is the column name. Required. Starts with the prefix specified in the Prefix for object name (SchemaNamePrefix code) system setting, Usr by default. Can contain Latin characters and digits. Make sure that the Code property is different from the Code of column's object. Otherwise, Creatio will display an error message when you attempt to publish the object.
   • Title is the localizable schema title. Required.
   • Data type is the column data type. Creatio populates the property automatically depending on the column type selected when adding a column. This is a non-editable field.
   • Description is the localizable column description.
   • Required specifies if the column is required. Select "Yes" since the column of the Unique identifier type is required for the object. If you attempt to save the object schema without the column of the Unique identifier type, Creatio displays a corresponding message.
   • Default value is the default column value. To specify the default value, follow the guide in a different section: Specify the default value for the column of the Unique identifier type.

   • Usage mode must be set to "Advanced."

     Creatio IDE supports the following column usage modes:

     1. General is the standard column mode in the application.
     2. Columns in the Advanced mode are displayed in the configuration and are available in the application.
     3. Columns in the None mode are displayed as system columns in the configuration and are not available in the application.

Specify the default value for the column of the Unique identifier type

To specify the default value for the column of the Unique identifier type:

1. Click in the Default value property.

2. Fill out the default value properties:

   • Set Default value type to "System variable."
   • Set System variable to "New Id" since the IDs must be unique.


Add an object index

Besides columns, Creatio IDE lets you add indexes to the object. Indexes are created automatically in the database table when you publish an object.

You can add an object index in the following ways:

• Single column index. In this case, select the Indexed checkbox in the Behavior property block. Creatio indexes lookup columns by default.


• Composite index. To do this, follow the guide below.

To add a composite object index:

1. Click in the properties area of the Indexes node’s context menu.

2. Fill out the index properties:

   • Set Code to the schema name. Required.
   • Select the Unique checkbox to enable integrity constraints for index columns, i. e., remove the possibility of adding repeating value combinations.
   • Select the columns to add to the index in the Index Columns property block. To do this, click Add in the Index Columns property block, select an object column, and specify the sorting order.


Set up the cascade connection

Creatio IDE lets you set up the cascade connection only for Lookup type columns.

To set up the cascade connection:

1. Add a Lookup type column (optional). To do this, click → Lookup in the context menu of the Columns node.



2. Set up the cascade connection in the Data source property block.

   Use the following controls to set up the cascade connection:

   • Do not control integrity checkbox
   • On lookup value deletion items


For this example, set up a cascade connection to the Contact object connected to the Account object via the [AccountId] lookup column. To do this, select Account in the Lookup field.

The cascade connection setup options are as follows:

• If you select the Do not control integrity checkbox, Creatio deletes the account without deleting the contacts connected to the account.
• If you do not select the Do not control integrity checkbox and select the Block deletion if there are connected records in current object with this value item, Creatio checks for connected contacts. If Creatio detects them, it displays a warning message asking you to confirm the deletion. Confirm the deletion to delete the account without deleting the contacts connected to the account.
• If you do not select the Do not control integrity checkbox and select the Delete records from current object with this value option, Creatio deletes both the account and connected contacts.

Implement a replacing object

The schema of the Replacing object type represents the replacing object.

To implement a replacing object:

1. Go to the Configuration section and select a custom package to add the schema.
2. Set up the package dependencies. You must add the package that contains the replaced object to the dependency list.

3. Click Add → Replacing object on the section list toolbar.



4. Select the parent object in the Object Designer.

   To replace the base object functionality, specify the object schema to replace in the drop-down list of the Parent object required property. For example, to replace the functionality of the BaseEntity base object schema, specify the BaseEntity schema as the parent object. Creatio adds columns inherited from the parent object to the Inherited columns property of the object schema automatically. After you select the parent object, Creatio populates other object properties automatically.


5. Implement the functionality that distinguishes the replacing object from the replaced object in the Object Designer.

6. Click Publish on the Object Designer’s toolbar to create a corresponding table in the database.

   You can use the Publish button to generate the static content and update the database structure. In this case, the configuration is not compiled. This accelerates the development of objects and replacing objects. The object compilation on publishing is required if the embedded process of the object was saved while editing but not published in the Process Designer. To compile the configuration, generate the static content, and update the database structure, select Publish and compile in the drop-down list of the Publish button.

Learn more about replacing configuration elements in a separate article: Replace configuration elements.

Deactivate object records

Creatio lets you deactivate object records to exclude them from the business logic. For example, this can be useful if the data is outdated and no longer used. You can deactivate records of any object.

To deactivate object records:

1. Open the schema of the object whose records to deactivate.

2. Select the Allow records deactivation checkbox in the Behavior property block.


3. Click Publish on the Object Designer’s toolbar.

Creatio can filter inactive records automatically for certain UI elements.

The automatic record filtering is available for the following UI elements:

• drop-down list
• lookup value selection box
• quick filter

The automatic record filtering is not available for the following UI elements:

• lookup content page
• section
• advanced filter

The UseRecordDeactivation parameter of the EntitySchemaQuery class lets you manage the filtering of inactive records. The default value is false. If you set the UseRecordDeactivation parameter to true, the select query to the object that has record deactivation enabled will contain the filter that excludes inactive record.

View the example that deactivates records in the front-end below.

var esq = Ext.create("Terrasoft.EntitySchemaQuery", {
   rootSchemaName: "MyCustomLookup",
   useRecordDeactivation: true
});

View the example that deactivates records in the back-end below.

var esq = new EntitySchemaQuery(userConnection.EntitySchemaManager, "ContactType") {
    UseRecordDeactivation = true
};
esq.PrimaryQueryColumn.IsAlwaysSelect = true;

View the resulting SQL query below.

SELECT [ContactType].[Id] [Id]
FROM [dbo].[ContactType] [ContactType] WITH(NOLOCK)
WHERE [ContactType].[RecordInactive] = 0
