Operations in Creatio IDE

The Configuration section lets you perform operations with structural items. View the section UI in the figure below.

The Configuration section UI includes the following functional areas:

• Toolbar (1)
• Package workspace (2)
• Main workspace (3)

Learn more about the Configuration section UI in a separate article: Creatio IDE.

Creatio IDE lets you execute operations with the following structural items:

• File system
• Packages
• SVN repositories
• Configuration elements
• Source code
• Configuration

Manage the file system

Use the File system development mode group (4) in the Actions drop-down list of the toolbar (1) to manage the file system.

The File system development mode action group lets you:

• Download packages from the Creatio database to the ...\Terrasoft.WebApp\Terrasoft.Configuration\Pkg directory (Download packages to file system item).
• Upload packages from the ...\Terrasoft.WebApp\Terrasoft.Configuration\Pkg directory to the Creatio database (Update packages from file system item).

To access the items in the File system development mode) action group (4), enable the file system development mode. Hover over an item in the action group to display a hint to enable the mode. To set up Creatio for file system development, follow the instruction in a separate article: External IDEs.

Manage packages

Use the Packages group (5) in the Actions drop-down list of the toolbar (1) to manage packages.

The Packages action group lets you open the package dependencies diagram (Package dependencies diagram item).

Manage SVN repositories

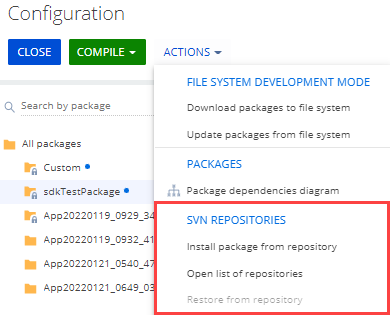

Use the SVN repositories action group (6) in the Actions drop-down list of the toolbar (1) to manage SVN repositories.

The SVN repositories action group lets you:

• Install a package from the SVN repository (Install package from repository item).
• Open the List of repositories tab (Open list of repositories item). The List of repositories tab lets you add, set up, and delete links to the SVN repositories available in Creatio.
• Update the configuration from the latest version in the SVN repository (Restore from repository item). The changes not yet committed to the SVN repository will be lost. The action is disabled if Creatio has no packages installed from the SVN repository.

The SVN version control is only available for Creatio .NET Framework. Learn more about managing SVN repositories in Creatio IDE in a separate article: Version control in Creatio IDE.

Manage configuration elements

Creatio IDE lets you run the following actions that manage configuration elements:

• Add a configuration element.
• Select the type of the configuration element to display.
• Select the status of configuration elements to display.
• Execute configuration element actions.
• Update the configuration elements.
• Search for a configuration element.

The Configuration section list of the main workspace (3) contains the index of configuration elements.

The section list includes the following columns:

• Name. The name of the configuration element set at its creation.

  Custom element name starts with the prefix specified in the Prefix for object name (SchemaNamePrefix code) system setting, Usr by default. When a configuration element schema is created, the prefix specified in the Prefix for object name (SchemaNamePrefix code) system setting is added to the current field automatically. Creatio checks for the prefix and whether it matches the system setting value when saving the schema properties. If the prefix is missing or does not match, the user receives a corresponding notification.

  The configuration elements are sorted in alphabetical order. The column lets you view a list of modified configuration elements (marked with next to the name). Creatio places the modified elements at the top of the record list. Learn more: Add a configuration element.

• Title. The title of the configuration element.

• Status. The status of the configuration element. Use the Filters drop-down list of the section workspace (3) toolbar to filter the configuration elements to display by the current column value. Learn more: Select the status of configuration elements to display.

  The Status column can have the following values:

  • — the configuration element must be updated.
  • — the configuration element contains an error.
  • — the configuration element must be updated and contains an error.

  Hover over the Status column value to view the following tooltips:

  • Needs to be installed in database for the SQL script and Data configuration elements.
  • Needs to be updated in database for the Object configuration element.
  • Needs generate source code for the Client module, Source code, Case, Marketing campaign, Business-process, User task configuration elements.
• Type. The configuration element type. Use the Type dropdown list of the section workspace (3) toolbar to filter the configuration elements to display by the current column value. Learn more: Select the type of configuration elements to display.
• Object. The object to which the bound package data is connected. The column value is available only for the configuration element of the Data type.
• Modified on. The modification date of the configuration element.
• Package. The name of the package that contains the configuration element.

Creatio IDE lets you sort the list column data in ascending or descending order. To sort the data, click the column name.

You can sort the list column data in the following ways:

• Sort the data in the current package. Select a package in the package workspace (2) to enable data sorting in the current package.
• Sort the data in all packages. Select the All packages folder in the package workspace (2) to enable data sorting in every package.

Add a configuration element

Use the Add drop-down list of the main workspace (3) toolbar to select the type of configuration element to add. Before you do this, select a package in the package workspace (2). Select a package to activate the items of the Add drop-down list. You cannot add configuration elements to preinstalled packages.

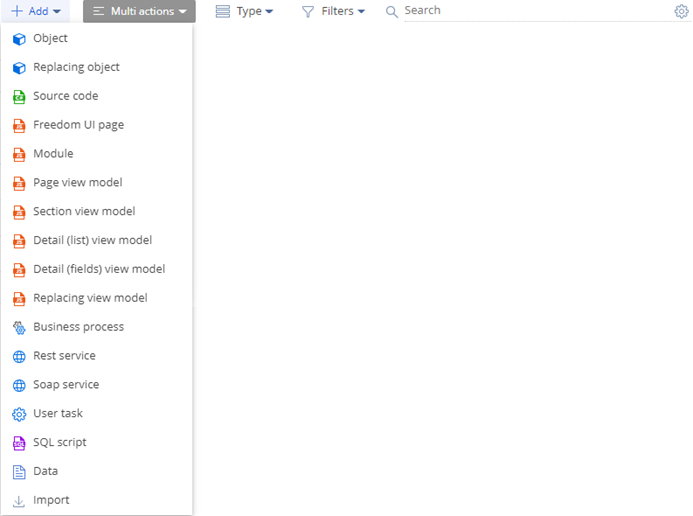

View the types of configuration elements to add in the figure below.

Select the type of configuration elements to display

Use the Type drop-down list of the main workspace toolbar (3) to select the type of configuration elements to display in the section list. Creatio displays the selected type in the Type column of the section list.

View the types of configuration elements to display in the figure below.

The following configuration elements have the Client module type:

• Freedom UI page, available for Creatio 8.0 Atlas and later
• Module
• Page view model
• Section view model
• Detail (list) view model
• Detail (fields) view model
• Replacing view model

The following configuration elements have the Object type:

• Object
• Replacing object

The following configuration elements have the Web service type:

• Rest service
• Soap service

Select the status of configuration elements to display

Use the Filters drop-down list of the main workspace (3) toolbar to select the status of configuration elements to display in the section list. Creatio displays the selected type in the Status column of the section list. Creatio saves the settings of the Filters drop-down list to the user profile and applies them when you open the Configuration section.

View the statuses of configuration elements to display in the figure below.

Run configuration element actions

Creatio IDE lets you run the following action types:

• Single. Runs with a single configuration element.
• Bulk. Runs with multiple configuration elements.

Run a single configuration element action

The configuration element menu of the main workspace (3) lets you run a single configuration element action. To open the configuration element menu, click in the configuration element row of the section list. The item index of the configuration element menu depends on the configuration element type. Learn more about the types of configuration elements: Select the type of configuration elements to display.

The single action types are as follows:

• Edit an object (Edit process item). If the object was created by a third party, Creatio displays the corresponding notification. Available for configuration elements of the Object type.

• Download the current configuration element in as an *.md file (Export item). You can install the exported configuration element into a different environment. Learn more about exporting configuration elements in a separate article: Transfer configuration element schemas.

  Creatio displays the item for the following configuration elements:

  • Object
  • Source code
  • Client module
  • Business-process
  • Web service
  • Case
  • User task
  • Marketing campaign
• Move the current configuration element to another package (Move to another package item). The item opens a box that lets you select the destination package. When you move the configuration element, Creatio IDE can set dependencies automatically. Available for configuration elements of all types.

• Delete a configuration element (Delete item). Inactive for configuration elements in preinstalled packages. Available for configuration elements of all types.

  You can also delete a configuration element in the section list ( button). The button is available for configuration elements of custom packages. Hover over the record in the Configuration section list to bring up the button.

• Install the current configuration element (Install item). Creatio installs the element into the database. If the data is not installed into the object of the Object column correctly, hover over the corresponding Status column value to view the error description. Creatio also displays the error description in the configuration element properties.

  Creatio displays the item for the following configuration elements:

  • SQL script
  • Data
• Update the database structure for the object (Update database structure item). Available for configuration elements of the Object type.

• Generate the source code of the current configuration element (Generate source code item). Will run if the process contains compilable elements.

  Creatio displays the item for the following configuration elements:

  • Object
  • Business-process
  • User task

• Open the metadata tab of the current configuration element (Open metadata item).

  Creatio displays the item for the following configuration elements:

  • Object
  • Source code
  • Client module
  • Business-process
  • Web service
  • Case
  • User task
  • Marketing campaign

• Open the source code tab of the current configuration element (Open source code item).

  Creatio displays the item for the following configuration elements:

  • Object
  • Business-process
  • User task
• Lock the current configuration element from changes in the connected SVN repository (Lock element in SVN item). The item is available only for configuration elements installed from the SVN repository. Available for configuration elements of all types.
• Unlock the current configuration element for changes in the connected SVN repository (Unlock element in SVN item). The item is available only for configuration elements installed from the SVN repository. Available for configuration elements of all types.
• Discard the changes from the version control system repository (Discard changes item). The item is available if the configuration element’s package is connected to a version control system repository. Available for configuration elements of all types.
• Open the properties box of the current configuration element (Properties item). Available for configuration elements of all types.

Execute bulk configuration element actions

Use the Multi actions drop-down list of the main workspace (3) toolbar to run bulk actions with the selected configuration elements. Select the relevant configuration elements in the section list of the main workspace (3) to activate the items of the Multi actions drop-down list. The index of displayed items in the Multi actions drop-down list depends on the type of configuration elements selected in the section list. Learn more about the types of configuration elements: Select the type of configuration elements to display.

View the bulk actions with configuration elements in the figure below.

Creatio offers the following bulk action types:

• Export the configuration elements as a *.zip archive (Export item). You can install the exported configuration elements into a different environment Learn more about exporting packages in a separate article: Transfer packages.
• Move the package configuration elements to a different package (Move to another package item). The item opens a box that lets you select the destination package. When you move the configuration elements, Creatio IDE can set dependencies automatically.
• Delete the configuration elements (Delete item).
• Generate the source code of the configuration elements (Generate source code item). Will run if the process includes compilable elements.
• Update the database structure for the configuration elements (Update objects DB structure item).
• Install the configuration elements of the SQL script type into the database (Install SQL script item).
• Install the configuration elements of the Data type into the database (Install data item). The data is installed into the object of the Object column.

Update the configuration elements

Use the Actualize items action group in the Actions drop-down list of the toolbar (1) to update the configuration elements.

The Actualize items action group lets you:

• Update the database structure for outdated configuration elements (Update DB structure where it is needed item).
• Install the necessary configuration elements of the SQL script type (Install SQL scripts where it is needed item).
• Install the necessary configuration elements of the Data type (Install data where it is needed item).

Creatio will display the corresponding notification after updating the configuration elements.

Search for a configuration element

Use the Search search bar of the main workspace (3) toolbar to search for a configuration element in the section list by the element name. Creatio saves the search settings to the user profile and applies them when you open the Configuration section.

You can search for a configuration element in the following ways:

• Search for a configuration element in the current package. Select the package in the package workspace (2) to enable searching for a configuration element in the current package.
• Search for a configuration element in all packages. Select the All packages folder in the package workspace (2) to enable searching for a configuration element in every package.

To set up additional search parameters, click in the Search search bar of the main workspace (3) toolbar.

Creatio IDE lets you set up the following additional search parameters:

• Search by title (Search by column “Title” item). Selected by default.
• Search by a unique ID (Search by column "UID"item).

• Search mode.

  • The configuration element name starts with the text you type in the Search search bar (Starts with item). Selected by default.
  • The configuration element name contains the text you type in the Search search bar (Contains item).
  • The configuration element name is the same as the text you type in the Search search bar (Equals item).

Click Apply to apply the changes.

Use hot keys

Creatio IDE lets you use hot keys in the Designers of the following configuration element types:

• Source code
• Client module
• User task
• SQL script

To display the index of available hot keys, click in the corresponding Designer of the configuration element.

View hot keys supported in Creatio IDE in the table below.

Manage the source code

Use the Source code group (8) in the Actions drop-down list of the toolbar (1) to manage the source code.

The Source code action group lets you:

• Generate the source code for modified schemas (Generate for modified schemas item).
• Generate the source code for schemas that require it (Generate where it is needed item).
• Generate the source code for every schema (Generate for all schemas item). This operation might take more than 10 minutes.

Creatio generates the source code for schemas in the background.

The major features of background generation are as follows:

• Background generation does not affect the core user workflows.
• Starting compilation or a new source code generation is not possible while the running operation is not complete. If you attempt to start these actions, Creatio warns you that the source code generation is still in progress.
• We do not recommend working on functionality that requires compilation until the source code generation is done. That includes installing applications and extensions, configuring the UI and business logic.

As a result of the source code generation, Creatio will display the corresponding notification in the communication panel.

Manage the configuration

Creatio IDE lets you execute the following configuration management actions:

• Validate the configuration.
• Compile the configuration.

Validate the configuration

Use the Configuration action in the Actions drop-down list of the toolbar (1) to validate the configuration.

The Configuration action group lets you check for dependency conflicts that might appear after you transfer elements between packages (Validate configuration item).

Compile the configuration

Run the actions that compile the configuration in the section toolbar.

You can compile the configuration in the following ways:

• Compile only the configuration changes (Compile button on the toolbar (1)).
• Compile the configuration (Compile all button of the Compile button’s drop-down list on the toolbar (1)).

Creatio runs the following actions as a result of the configuration compilation:

• Update the executable files.
• Download the static content to the ...\Terrasoft.WebApp\conf directory.

Once the compilation finishes, Creatio displays a corresponding notification. The changes take effect for users working in the relevant configuration.

Creatio displays any compilation errors that might occur as part of configuration compilation in the dialog box.

The compilation errors have the following properties:

• The error type icon (error or warning ).
• The name of the relevant file.
• The error description.
• The error code.
• The number of the line with an error.
